Specifications

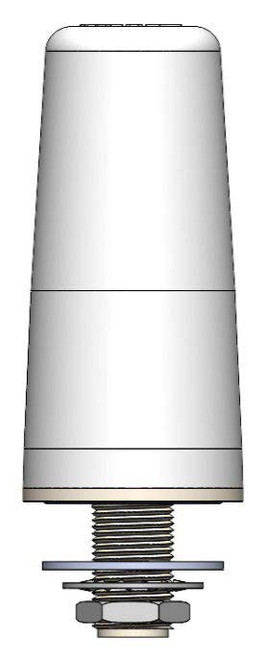

STI-CO® Commuter Bus Antenna
- 769–861 MHz operating frequency with an omnidirectional radiation pattern for reliable fleet communications
- Direct stud-mount design provides superior theft resistance and secure installation
- Rugged, low-profile construction (3.62" tall) minimizes breakage and reduces life cycle costs
- Available in black or white to accommodate fleet vehicle requirements
- Meets MIL-STD-810/AREMA environmental standards for dependable performance in demanding conditions
Engineered for Fleet Reliability and Theft Resistance
The STI-CO® Commuter Bus Antenna is designed for transit authorities and fleet operators requiring reliable communications, rugged construction, and long-term durability. Operating across the 769–861 MHz frequency range, this low-profile antenna delivers omnidirectional coverage, an average efficiency of 87.6%, and a VSWR of less than 1.5:1.
Secure Stud-Mount Installation
The direct stud-mount design provides a secure, tamper-resistant installation that helps prevent antenna theft and reduces fleet maintenance requirements.
Rugged, Low-Profile Construction
Standing just 3.62 inches tall, the antenna minimizes exposure to damage from overhangs, cleaning equipment, and everyday fleet operations. Available in black or white, its durable construction helps reduce replacement frequency and overall life cycle costs.
Built for Demanding Environments
Engineered to meet MIL-STD-810 and AREMA environmental standards, the antenna is designed to withstand extreme temperatures, vibration, moisture, and shock.
Proudly Designed & Manufactured in the U.S.A.
STI-CO® manufactures its antennas in the United States and maintains strict quality control and traceability. We are ISO 9001 and AS9100D certified and ITAR registered.
Backed by Our 5-Year Warranty
Every STI-CO® Commuter Bus Antenna is backed by our industry-leading 5-year warranty, providing confidence in long-term performance and reliability.
Contact STI-CO® today to request a quote or discuss your fleet antenna requirements.
Part Number
- RFPT-NB-800-WT-A
- Operating Band (MHz) 769-861
- Bandwidth (MHz) 91
- VSWR <1.5:1
- Average Efficiency (%) 87.6
- Average Peak Gain (dBi) 2.92
- Polarization Vertical
- Radiation Pattern Omnidirectional
- Input Impedance (Ω) 50
- Continuous Power Rating (W) 100
- spec__mechanical__Overall Height (in) 3.62
- spec__mechanical__Overall Diameter (in) 1.67
- spec__mechanical__Weight (oz) 5.62
- spec__mechanical__Connection N-Type Female
- spec__mechanical__Radome Material UV-Stabilized PC/PBT (Xenoy®)
- spec__mechanical__Base Material 360 H02 Brass w/ Tri-Metal Finish
- spec__mechanical__Temperature Range (°F) -40 to +158
